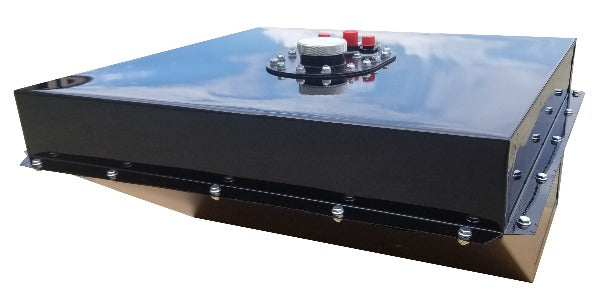

26 GALLON WEDGE CIRCLE TRACK FUEL CELL 1262FD 24.5x24.5x17

PRO RACING PRO TRUCK PRO STREET WEIGHT TRANFER BLADDER OFF ROAD

26 Gallon WEDGE STYLE

Length  24.5 inches

Width    24.5 inches

Height     17 inches

Mounts with the Wedge to the Rear

With the Fittings Toward Front

# 8 Fuel Return

# 8 Rollover Vent

# 10 Fuel Pickup

16 Bolt Oval 2.5 inch Lid Fill Plate Assembly with Flapper

Aluminum Billet Cap

Fuel Pickup in Right Rear Side

Spot Welded Steel Container

Fully Powder Coated Finish

Cross Linked Polyethylene Bladder

Can Also Connect Remote Hose to Fill Plate

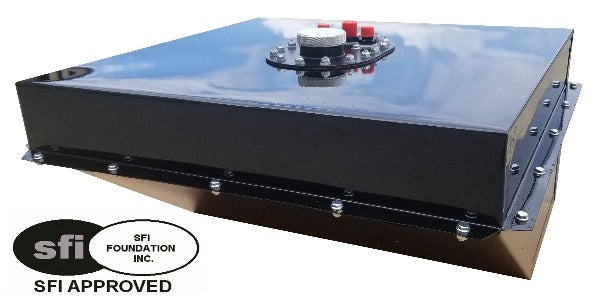

Available Option SFI 28.3 Approved with Foam
