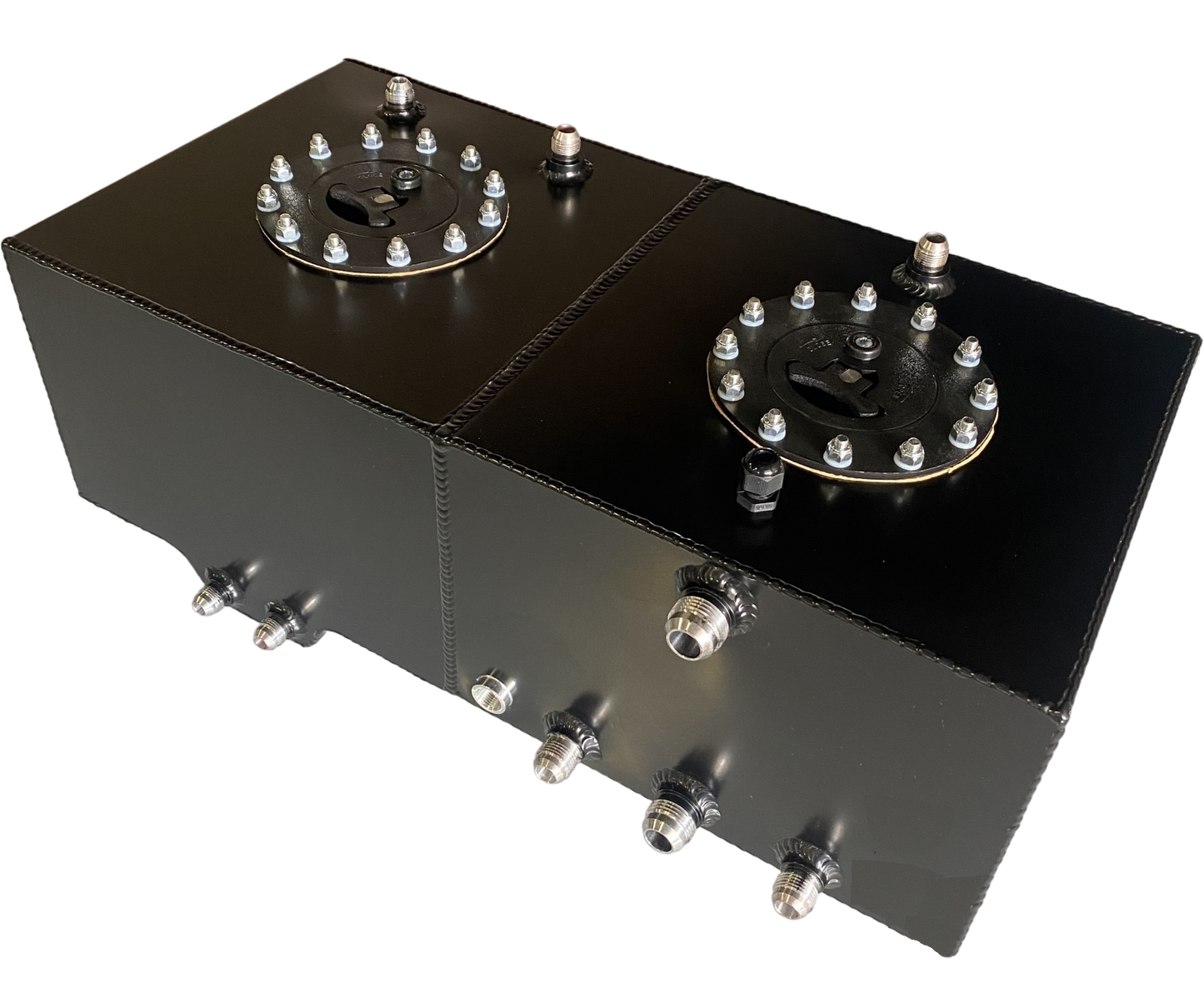

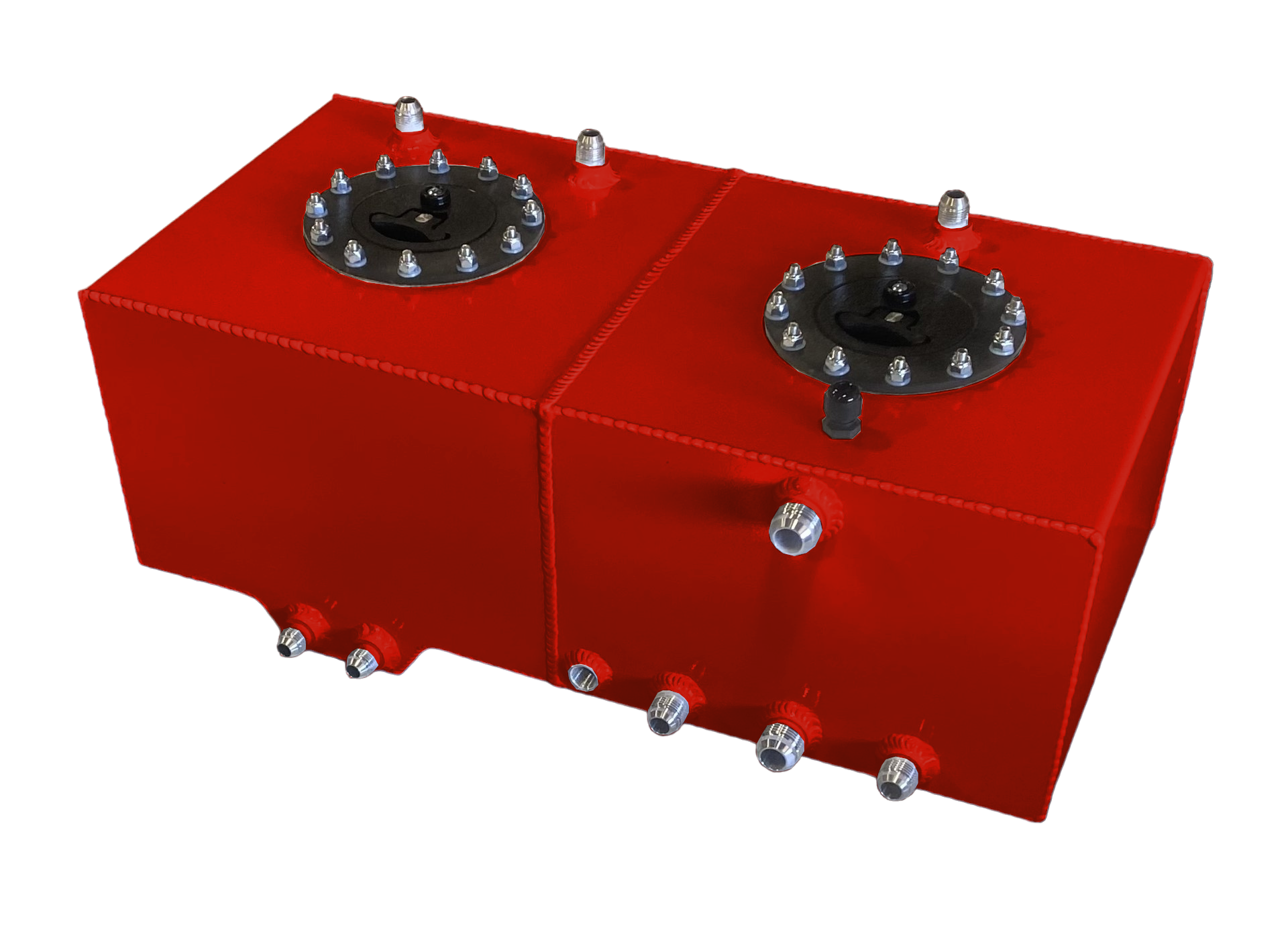

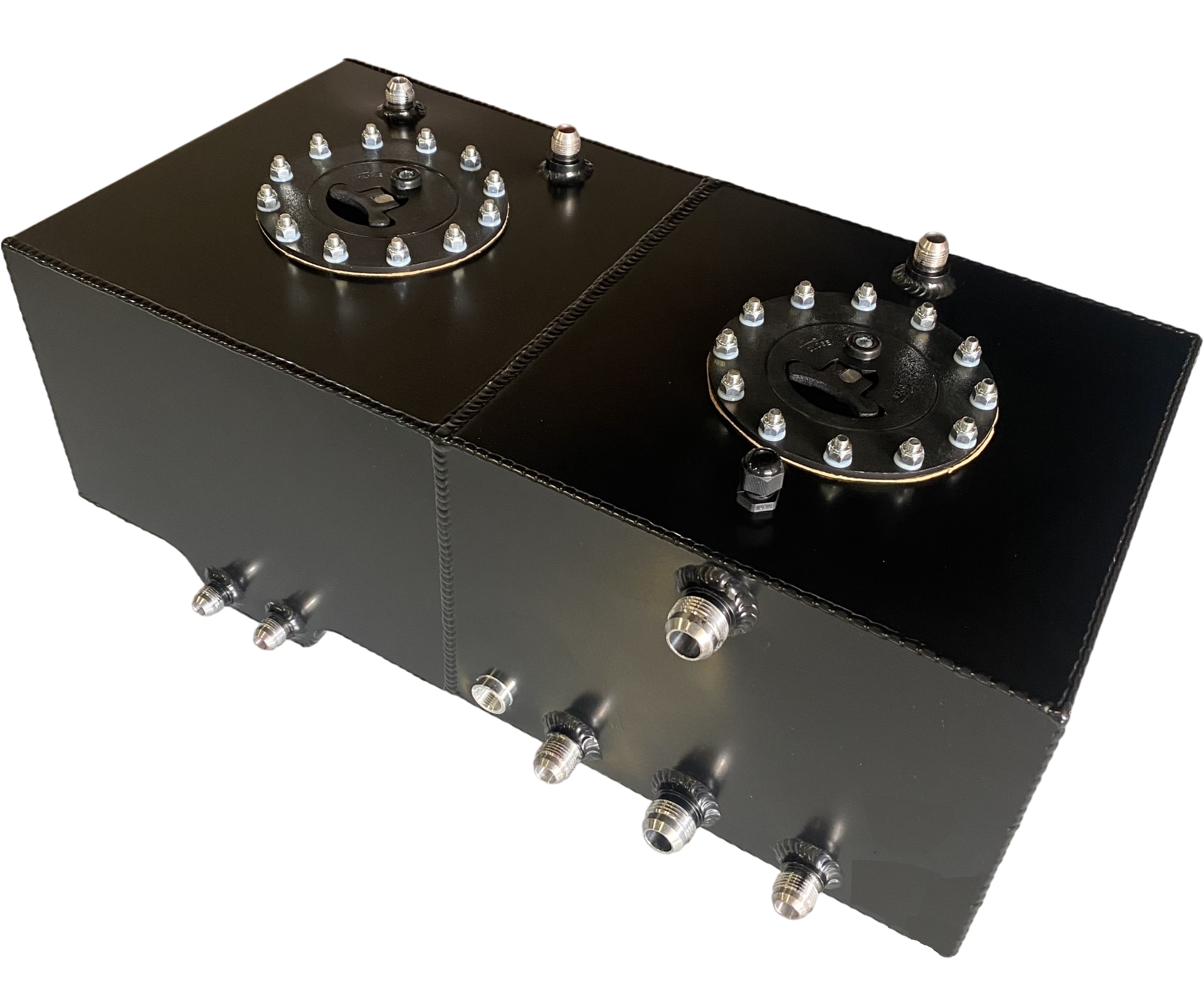

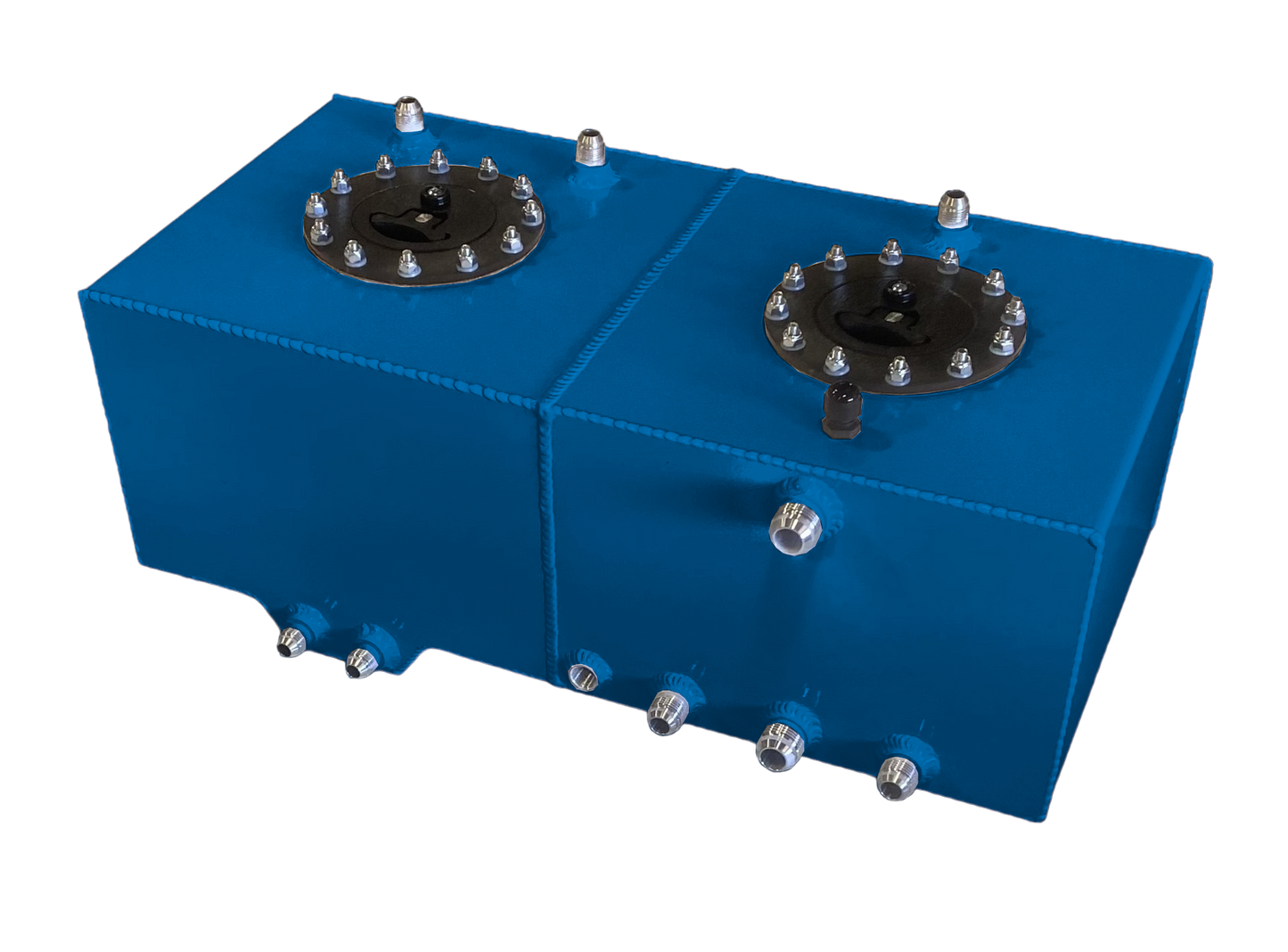

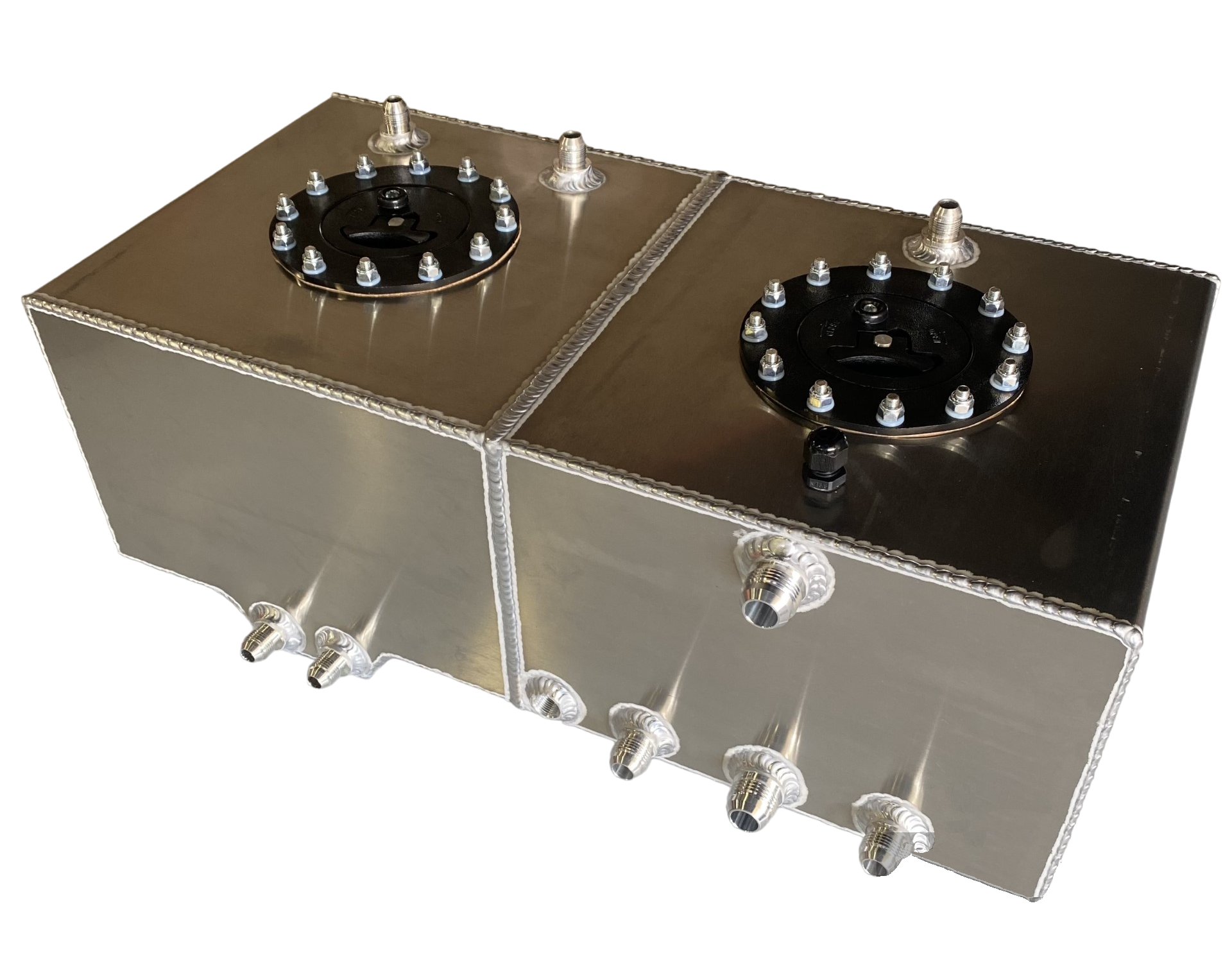

5 GALLON ALUMINUM AIR / ICE FUEL COOLER 5 GALLON FUEL CELL COMBO 2050M 12x24x8

RACING / PRO STREET / PRO TRUCK / OFF ROAD

5 GALLON ALUMINUM AIR / ICE FUEL COOLER with 5 Gallon FUEL CELL COMBO 2050M

5 GALLONS of Ice Water

LENGTH  12 inches

WIDTH    24 inches

HEIGHT    8 inches

Built In 1/2 Inch Tubing Coil Circulates Ice Cold Fuel In and Out of Tank

2 Number 10 AN Fittings for Fuel In and Out Ports

2 Number 12 AN Fittings for ICE Water In and Out to Air Intercooler

1 Number 8 AN Rollover Vent

3/8 NPT Drain

Electrical Wire Pass Through Connector

Lowers Fuel Temperature By over 40 %

Tig Welded with 5052 Aircraft Aluminum Alloy

12 Bolt Heavy Duty Aircraft - Style Flush Mount Lid Assembly

Works with External Water Pump to Air Intercooler

Works with Internal Rule 2000 Water Pump to Air Intercooler

Built In Mounting Bracket for Rule 2000 Water Pump

Water Pump or Water Pump Hose Not Included

 5 GALLONS of Fuel

# 8 Rollover Vent on Fuel Cell

# 8 Fuel Return on Fuel Cell

Two # 8 Fuel Pickup on 2 inch sump on Bottom of  Fuel Cell

12 Bolt Heavy Duty Aircraft - Style Flush Mount Lid Assembly

Aircraft Type Racing Foam Filled in Fuel Cell
